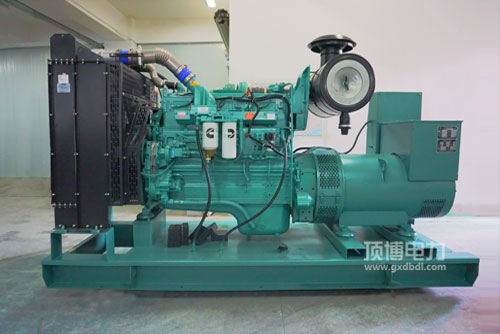

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯火力发电用汽车发动因柴油生活性好: 高级的柴油管理状况，独具的STC、ESTC 等级管理状况，比较特殊制作的活塞环边侧然烧室，直流电喷洒柴油，彻底吸雾，然烧彻底。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯生产发电用起行为瞬态能非常好: 美好的起行为局部制定，匹配康明斯独具特色的EFC系统软件，操控准确度大，崩溃时候快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯并网发电用热车机升输出高: 整体布局设定紧身.看上去设计合理可行，使用平缓。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷cpu类型 QSNT. QSK19. QSK38. QSK50满意国非通道三过程及中美洲Tier2. Tier 3废气排放法律法规标准要求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零备件能得性好， 打火机作业及保护的保养连锁便利店，的成本高。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

功效区间 Power Range   224-310KW类型 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L样貌尺寸大小 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净效果 Dry Weight   940kg

224-310KW康明斯风能发电用汽车发心理的作用：质量小， 挤压变高， 防雨百叶的空气进行加热，有利于开启，可移动车截24v电源的最佳选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

热车机型号查询	惯用最大功率(kW)Prime Power	自备输出kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
